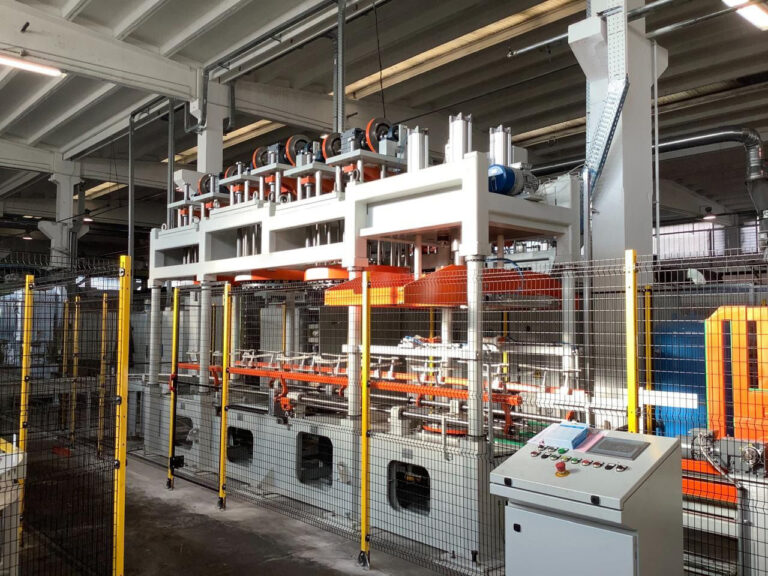

- Parmar Machines & Technologies Pvt. Ltd. presents its Vertical Automatic Body Forming Line with integrated Neck-in and Assembly, engineered for high-speed production of up to 720 drums per hour. Designed for precision, reliability, and continuous industrial operation, the line delivers seamless automation, consistent quality, and robust performance for modern steel drum manufacturing requirements. The fully automatic line is built to optimize production efficiency, reduce handling time, and maintain high dimensional accuracy throughout the manufacturing process. With advanced engineering and heavy-duty construction, the system is suitable for large-scale drum production operations demanding speed, consistency, and long-term operational stability.
TYPES OF STEEL DRUMS MANUFACTURED ON THIS LINE

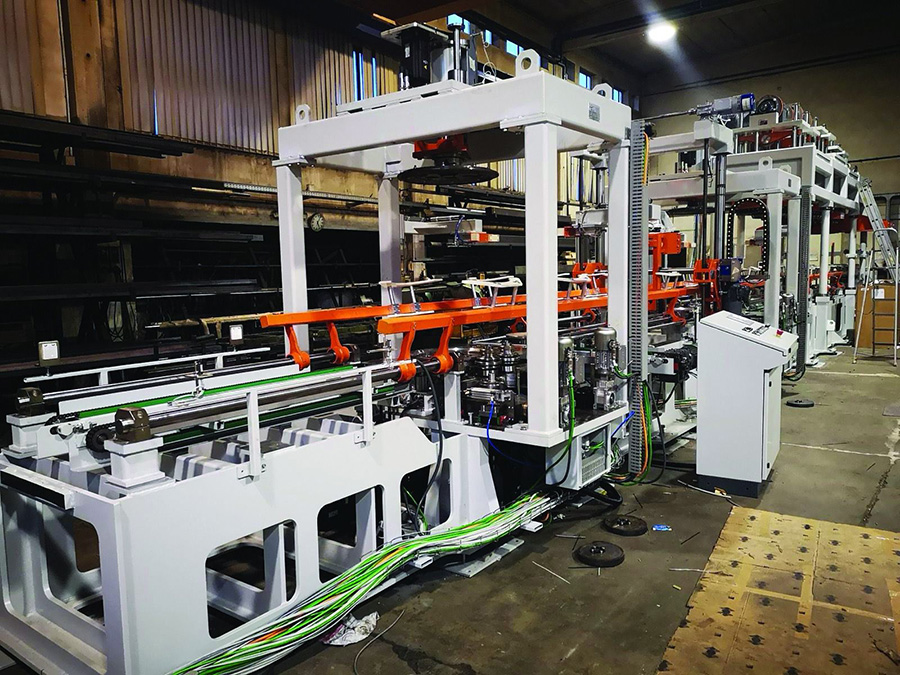

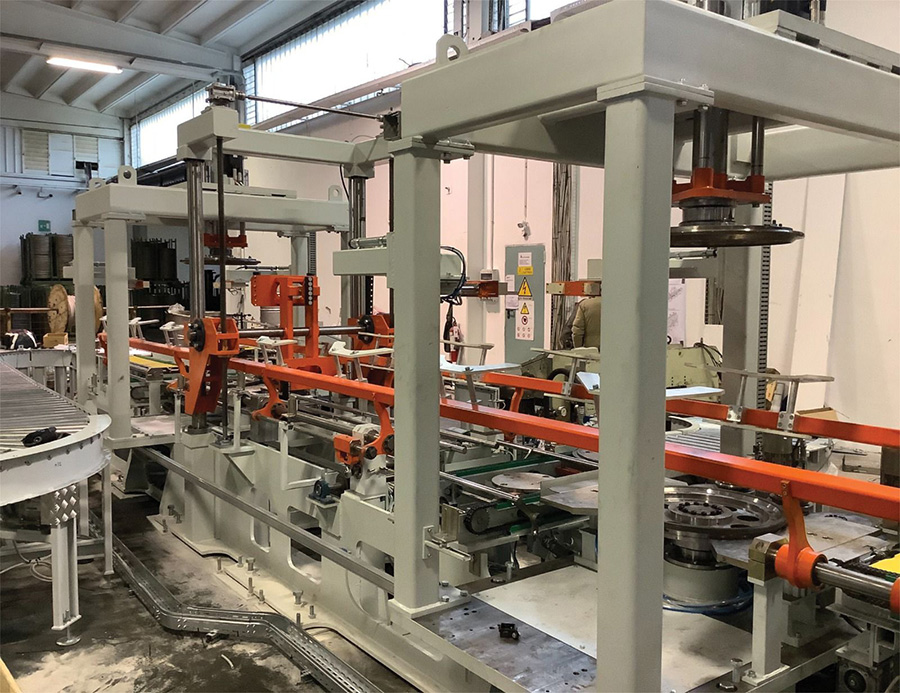

- FORMING LINE
The forming line is designed for precise shaping and preparation of steel drum bodies before assembly. It ensures uniform dimensions and consistent quality.
Main Barrel Feeder
Available in 3 or 4 corrugation.

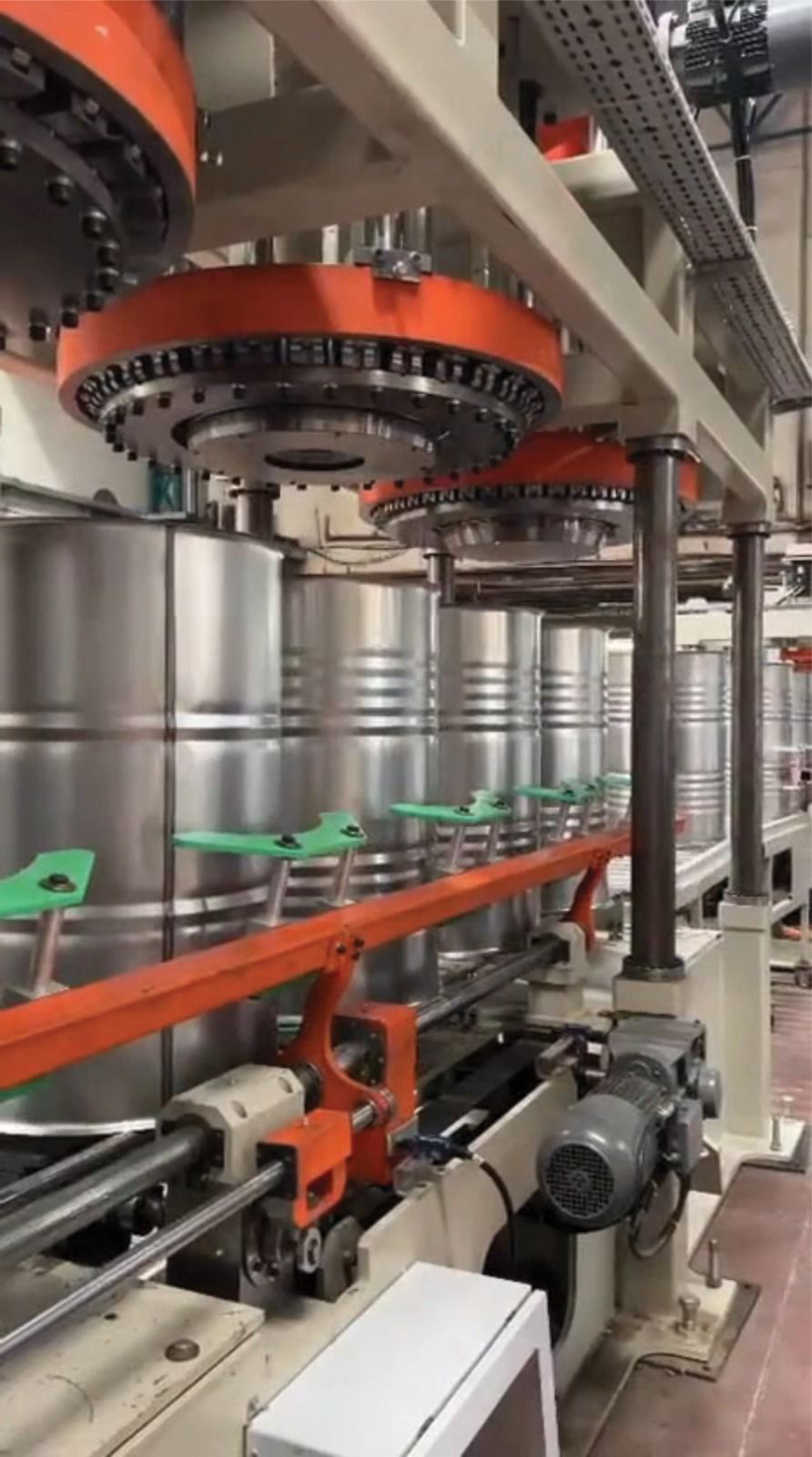

Flanger Unit
Suitable for multiple drum types:
- Open Mouth Barrels
- Tight Head Barrels
- Neck-In Barrels
Beader Machine
Supports both:
- W-Bead
- Normal Hoop Bead
Corrugator Unit
Available in 3 or 4 corrugation.
Neck-In Machine
Designed for precise forming of:
- Standard Neck-In Barrels

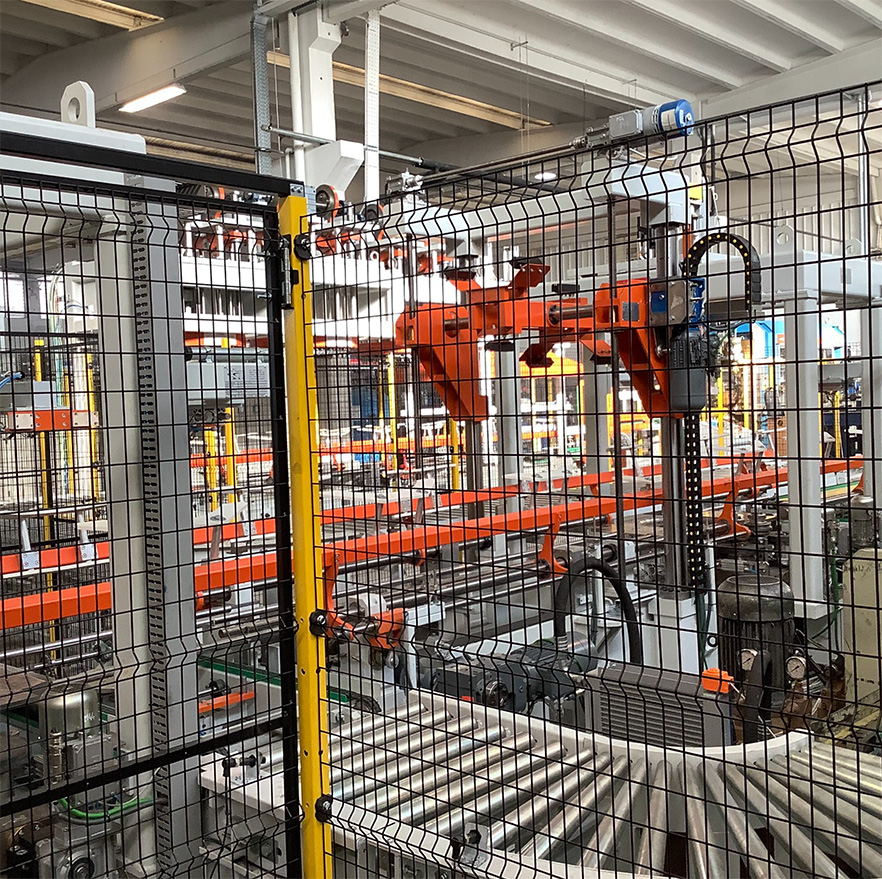

Transfer System
Ensures smooth movement of barrels between forming stations.
- Automatic Tool Change Syste
Integrated tool changing for Tight Head and Open Top drums, controlled directly from the control panel.
- Servo-Based Cam Mechanism
Fully operated on advanced servo-driven cam systems,
ensuring high precision and consistent flanging on every
barrel.Â
- Automatic Height Adjustment System
Equipped with screw-based auto height adjustment for processing different barrel heights with ease.
- High Consistency & Accuracy
Guarantees uniform flanging profile and dimensional stability across all drum types.
- User-Friendly Control Interface
Easy parameter setting and operation
- Hydraulic-Free Operation
No hydraulic system used, resulting in:
- Lower maintenance
- Cleaner operation
- Higher reliability
- Multi-Corrugation
Capable of forming 3 or 4 corrugations on the drum body, adjustable via the control panel based on your spec.
- Pre-Printed Sheet Compatibility
The machine is capable of processing preprinted drum sheets without affecting logos, branding, or surface finish.
- High-Speed Crimping Technology
Equipped with advanced crimping technology, enabling line speeds of up to 720 DPH.

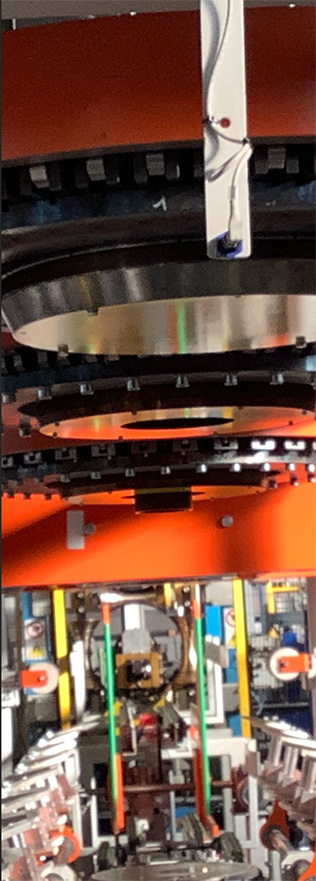

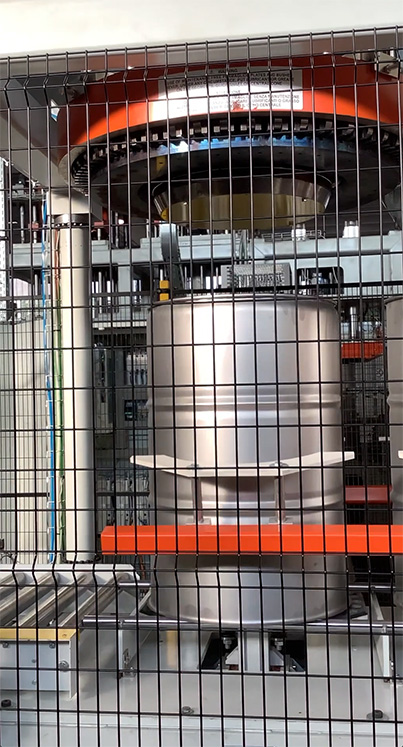

- Crimping Mechanism
Corrugation is performed using 32-segment male and female tooling driven by servo motors.
- Segments require no replacement throughout machine life.
- Non-Rotational
Corrugation is formed without any rotation of the drum, eliminating surface scratches, dents, and profile damage.
- Smart Line Integration & Auto Bypass System
If a different barrel type (e.g., Tight Head) is selected, the system automatically skips the Neck-In machine, ensuring uninterrupted line operation.
- No Secondary Line Required
Eliminates the need for a separate or secondary production line for manufacturing gooseneck barrels
- Centralized Control Interface
User-friendly control panel for easy monitoring, parameter setting, and production mode
- Multiple Neck-In Profile Selection
Supports various neck-in barrel types, selectable from the control panel, including:
- Hoop Bead
- W-Bead
- With Corrugation
- Without Corrugation
- Flexible Bead Profile Selection
Supports both:
- W-Bead
- Normal Hoop Bead
Selection can be easily made from the control panel as per production requirements.
- High-Speed Crimping Technology
Equipped with advanced crimping technology that supports line speeds of up to 720 drums per hour.
- Servo-Based Cam System
Fully cam-driven and operated by high-performance servo motors, ensuring

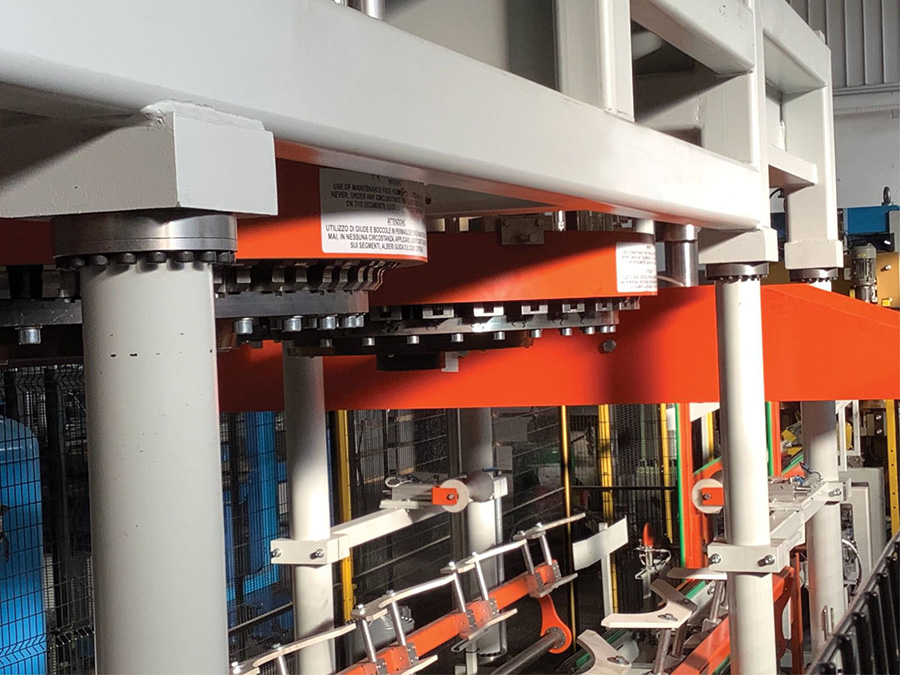

- 32-Segment Crimping System
Crimping is performed using 32-segment male and female tooling, powered by servo motors for uniform bead formation.
- Centralized Control Interface
All operating parameters and modes are managed through a user-friendly control pan.

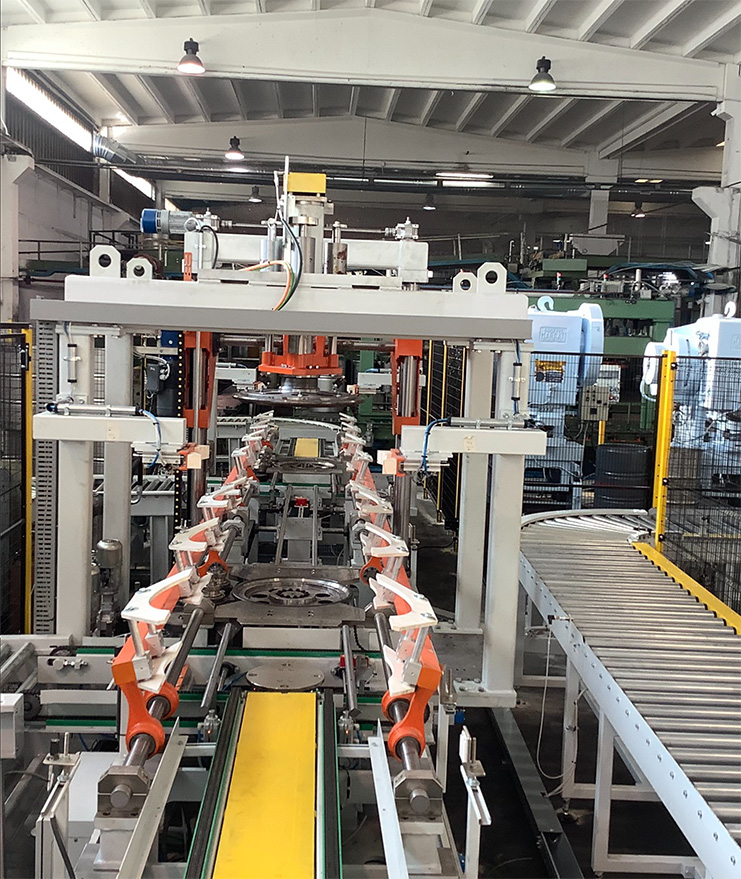

- ASSEMBLY LINE
The assembly line ensures accurate and reliable top and bottom lid assembly for leak-proof and durable drums.
Full Barrel Feeder System
Automatic feeding for continuous assembly line operation.

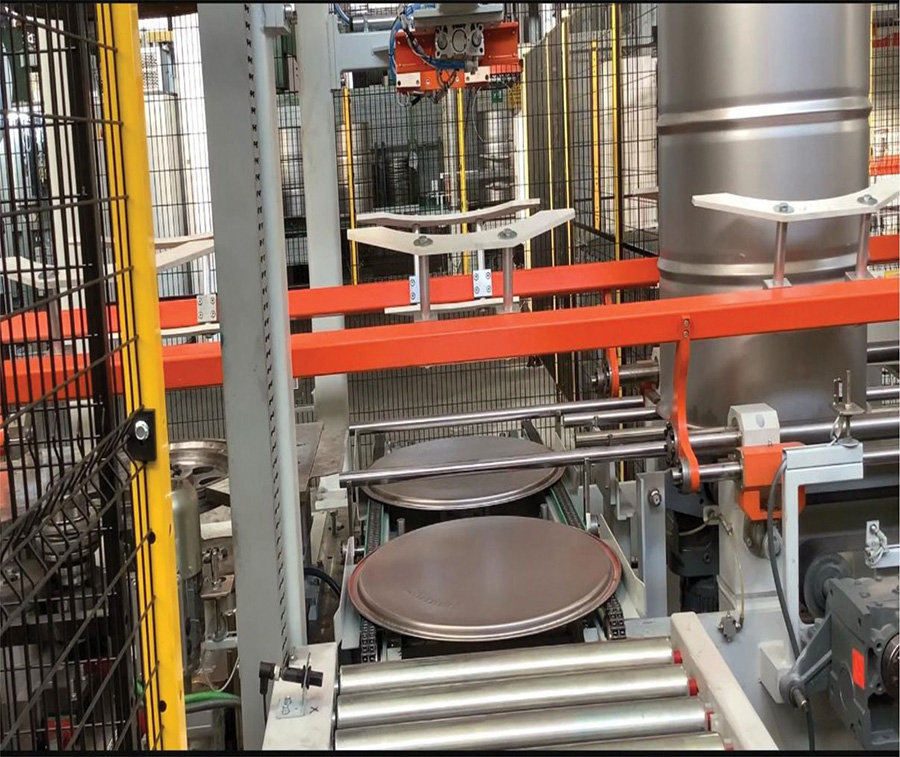

Top Pre-Assembler
Prepares and positions top lids for precise seaming.
Turnover Table
Automatic barrel turning system for smooth transfer to bottom assembly.
Synchronized Line Control
Ensures perfect coordination between all assembly stations.
Top Pre-Assembler
Prepares and positions top lids for precise seaming.
Top Seamer
High-strength seaming unit for secure and uniform top sealing.
Bottom Pre-Assembler
Ensures correct placement of bottom lids.
Bottom Seamer
Provides strong, leak-proof bottom seam formation.

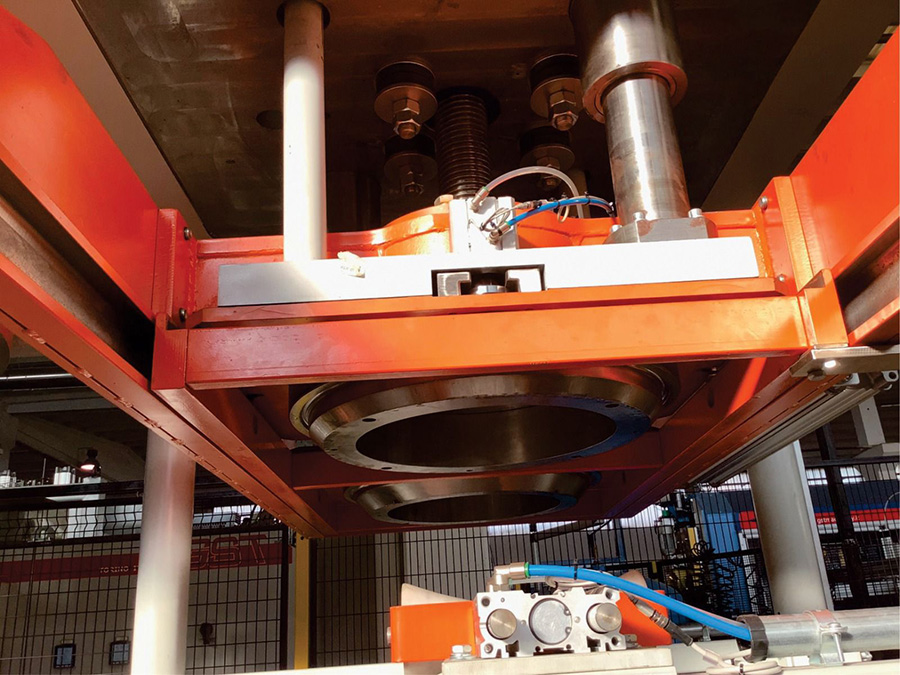

- Servo-Based Vertical Seamers
Equipped with advanced servo-driven vertical seaming systems for high precision, stability, and consistent seam quality.
- Automatic Turnover & Bypass System
Integrated auto turnover system for smooth top-tobottom transfer.
Includes intelligent profile selection and bypass
function for Open Mouth drums, ensuring uninterrupted line flow.
- High-Speed Seaming Operation
Each seaming cycle is completed in only 4 seconds, supporting high-volume production.
- Compensator Screw System
Advanced compensator screw mechanism ensures uniform pressure distribution and precise seam formation on every drum.
- Servo-Based Arm Adjustment System
Seamer arms are adjusted through servo motor–driven screw mechanisms, ensuring accurate and repeatable setup for different drum types.
- Automatic Pre-Assembler Unit
Equipped with a pre-assembler system that automatically fits lids onto barrels before seaming, reducing manual handling and improving accuracy.
- Automatic Roller Lubrication System
Built-in auto-lubrication system improves roller durability and minimizes maintenance downtime.
- Quick Roller Change System
Advanced roller mounting system enables roller change in under 10 minutes, ensuring minimal downtime.
- Servo-Based Vertical Seamers
Equipped with advanced servo-driven vertical seaming systems for high precision, stability, and consistent seam quality.
- Automatic Turnover & Bypass System
Integrated auto turnover system for smooth top-tobottom transfer.
Includes intelligent profile selection and bypass
function for Open Mouth drums, ensuring uninterrupted line flow.
- High-Speed Seaming Operation
Each seaming cycle is completed in only 4 seconds, supporting high-volume production.
- Compensator Screw System
Advanced compensator screw mechanism ensures uniform pressure distribution and precise seam formation on every drum.
- Servo-Based Arm Adjustment System
Seamer arms are adjusted through servo motor–driven screw mechanisms, ensuring accurate and repeatable setup for different drum types.
- Automatic Pre-Assembler Unit
Equipped with a pre-assembler system that automatically fits lids onto barrels before seaming, reducing manual handling and improving accuracy.
- Automatic Roller Lubrication System
Built-in auto-lubrication system improves roller durability and minimizes maintenance downtime.
- Quick Roller Change System
Advanced roller mounting system enables roller change in under 10 minutes, ensuring minimal downtime.
- 1. High-Speed Performance
The production line operates at a maximum
speed of 720 drums per hour (DPH), ensuring high-output capacity and maximum productivity.
- 2. Fully Automatic Speed Adjustment
The line automatically synchronizes with the welder machine, intelligently recognizing the incoming drum feed rate and adjusting speed accordingly for smooth,
continuous production.
- 3. No Hydraulic Systems
The entire line is designed without hydraulic systems, resulting in:
- Lower maintenance requirements
- Reduced operating costs
- Cleaner operation
- 4. 100% Servo Motor Driven
All machines and movements within the line are powered by fully adjustable servo motors, providing:
- Precise speed control
- Adjustable torque settings
- Higher accuracy
- Improved energy efficiency
- Reduced mechanical wear
- 5. Advanced HMI Control System
The complete line is operated via HMI (Human Machine Interface) control panels, allowing:
- Easy operation and monitoring
- Quick changeover between different steel drum types
- Full parameter customization Via Online
- User-friendly control and diagnostics
- 6) Lubrication-Free Line Design
- The complete vertical auto line is designed to operate without routine lubrication requirements in major forming systems.
- Eliminates the need for continuous manual greasing and oiling.
- Reduces manpower involvement and maintenance effort.
- Minimizes operational costs and improves overall cleanliness of the production area.
- 7) Energy Efficient Operation
- The full production line operates at a maximum connected load of 150 kVA only.
- Optimized servo-based systems ensure efficient power consumption.
- Lower energy requirement compared to conventional hydraulic or pneumatic-based lines.
- Reduces long-term electricity costs and improves ROI.
- Fully Automatic Operation
Designed for complete automatic functioning
with minimal operator intervention.

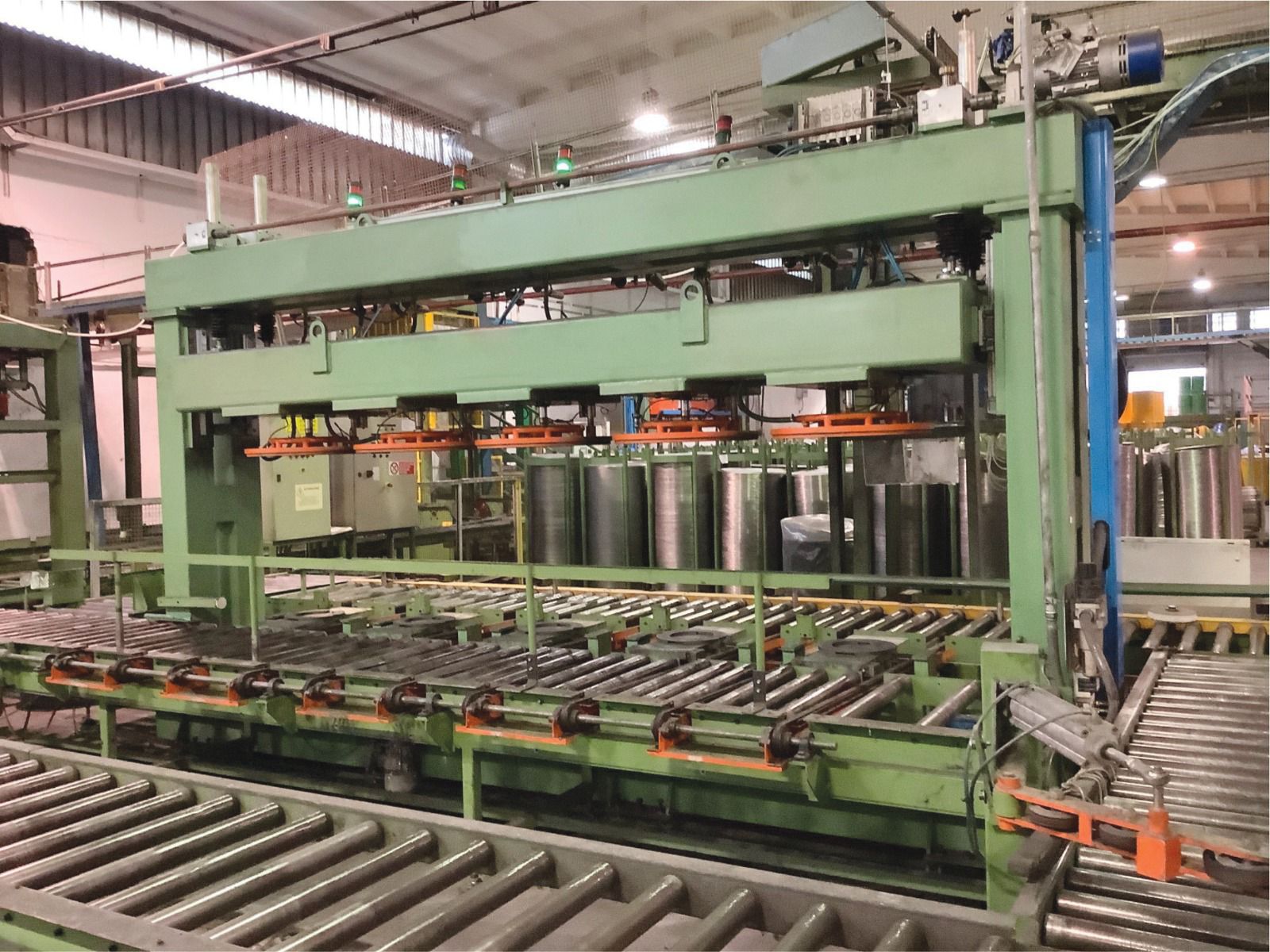

- 5-Station Simultaneous Testing
Performs automatic air leakage testing on five steel drums simultaneously, ensuring high throughput and efficiency.
- Automatic Drum Loading System
Automatically loads 5 steel drums at a time into the testing stations.
- Continuous Auto Feeding System
While 5 drums are under testing, the next 5
drums are automatically positioned behind
them, ensuring uninterrupted operation.
- Advanced HMI Control Panel
Complete machine control through a user-friendly HMIÂ system, allowing:
- Parameter setting
- Pressure monitoring
- Cycle control
- System diagnostics
- High Productivity & Reliability
Designed for continuous industrial operation
with consistent and accurate leak detection.
- Visual Leak Detection Indication
Clear and instant status display:
- Green Signal – No Leakage (Pass)
- Red Signal – Leakage Detected (Reject)
