- Conical Steel Drum Machinery
- Conical Steel Drum Machinery
- Our Conical Steel Drum Machinery delivers precision engineering for efficient drum production. Designed for durability and consistency, it streamlines the manufacturing process with automated forming, welding, and finishing. Ideal for industries needing reliable steel drum solutions, this machinery ensures high-quality output, reduced waste, and optimized productivity. Trust in strength and innovation!
- Machinery in Line as per Production Flow
- The Bead Expander Machine is an M.S. fabricated, hydraulically operated system powered by a 5 H.P. hydraulic power pack with necessary accessories. It operates via a panel control system and electrical components. The segmented bead dies are hardened and expand through cones connected to a cylinder via a guide bush assembly, retracting through a spring system. This machine forms beads (corrugations) on the barrel body in a single operation. It comes fully equipped with standard accessories and features a trolley system for body shell feeding, operated through a pneumatic cylinder.

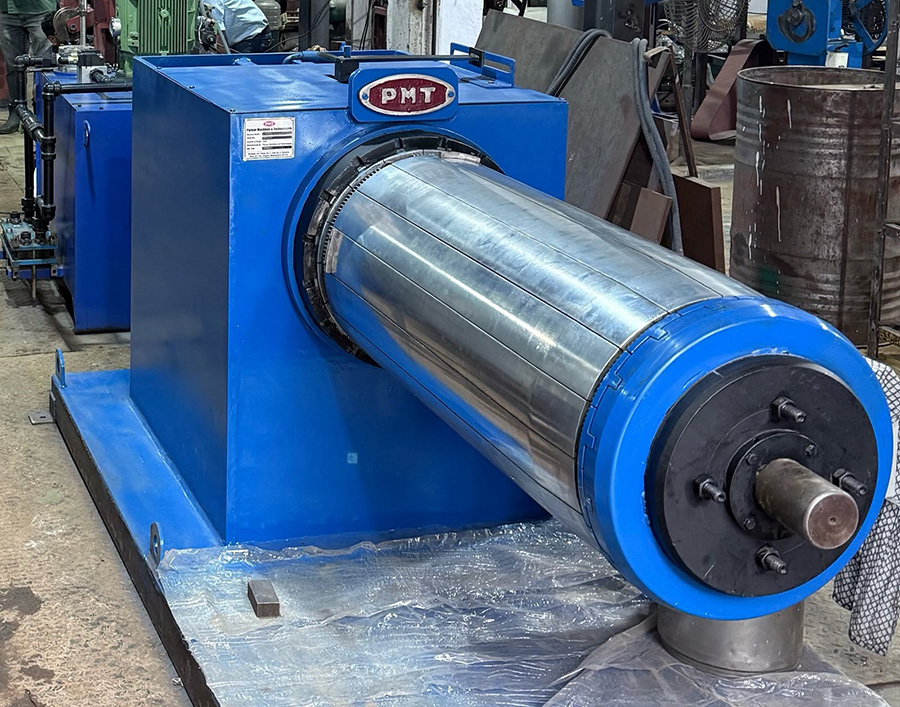

- The Barrel Body Expander Machine is a hydraulically operated system designed for precision expansion. It features 16 hardened OHNS segments with hard chrome plating to prevent scratches. The adjustable taper cone system, made of WPS material hardened to 55-57 HRC, expands the segments. The taper cone system is connected to a hydraulic cylinder through a bush system and retracts via an internal spring mechanism. The hard-chromed segment assembly is mounted on a sturdy M.S. fabricated stand. The machine operates horizontally, requiring manual feeding of the barrel shell and is controlled via a panel control system. It comes fully equipped with standard fittings and accessories.
- The Horizontal Press-Type Flanging Machine is a hydraulically operated system designed for barrel flanging, powered by a 10 H.P. hydraulic power pack with necessary accessories. It features a robust MS-fabricated structure with two hydraulic cylinders mounted on both sides of the head, connected to flanging die dishes through a guide bush assembly. Both heads move inward to flange the barrel body. The machine is equipped with a panel control system and supports indexing conveyors for enhanced automation. Proximity sensors replace traditional limit switches, ensuring greater accuracy. It includes a 40L hydraulic power pack, a 550L oil tank, and essential electrical accessories. Additionally, the machine comes with two triple-seam dies and complete standard accessories. The operation cycle is 14 seconds, and the machine can flange barrels up to 40 inches in length with a maximum diameter of 575mm. A pneumatic cradle system is integrated for efficient barrel ejection.
- The 514mm bottom lid cutting and embossing die set consists of a top cutting punch, an ejector buffer, a pressure ring, a forming block, a spring assembly, and a cutting ring, all fitted within a pillar die set. Manufactured using VMC machines for precision, the pillars and sleeves are made from WPS material, ensuring durability and robustness.
- Bottom Lid
- Bottom Lid
- The 560mm open-mouth top cutting and embossing die set consists of a top cutting punch, an ejector buffer, a pressure ring, a forming block, a spring assembly, and a cutting ring, all fitted within a pillar die set. The die is precisely manufactured using VMC machines for accuracy, with pillars and sleeves made from WPS material to ensure durability and robustness.
- Top Lid
- Top Lid
