210L Horizontal Steel Drum Machinery – Parmar Machine and Technologies

Introducing our state-of-the-art 210L Horizontal Steel Drum Machinery, engineered to revolutionize the drum manufacturing process with unparalleled efficiency and productivity. Boasting an impressive capacity of 2000 to 2500 drums within a mere 8-hour timeframe, this cutting-edge solution redefines industry standards, enabling seamless mass production while maintaining superior quality standards. Built with precision engineering and equipped with advanced technology, our horizontal steel drum machinery is the epitome of reliability and performance, ensuring consistent output even in the most demanding manufacturing environments. Whether you're looking to expand production capabilities or optimize existing processes, our machinery stands ready to elevate your operations to new heights of success. Join the forefront of innovation and efficiency with our 210L Horizontal Steel Drum Machinery.

Horizontal press type flanging for barrels with a 10 H.P power pack and hydraulic accessories. The machine is MS fabricated and hydraulically operated with two cylinders fitted on both sides of the head connected to the flanging die dishes through a guide bush assembly system, with both heads moving inside to flange the body. The machine has a panel control system and is capable of indexing conveyors. The machines are fitted with proximity sensors instead of limit switches for better accuracy. The system includes a hydraulic power pack (40L) and oil tank (300L), as well as electrical accessories, provided with two triple seam dies and complete standard accessories. The operation cycle is 14 seconds. The machine is suitable for flanging barrels with a maximum length of 40 inches and a maximum diameter of 575mm. It is fitted with a pneumatic cradle system for ejection.

Hydraulic horizontal double beading machine, the machine is MS fabricated and hydraulically operated via a 20 H.P power pack system. The machine is operated via a panel control system and includes electrical accessories. Bead dies are segmented and duly hardened on both moving heads, operated via hydraulic cylinders on both moving heads. Segments expand through the double hydraulic heads, which are connected to the hydraulic cylinders on both sides through a guide bush assembly system. The power pack is 20 HP, and the oil tank capacity is 650L. The operation cycle is 13 14 seconds with a maximum output of 5 6 shells/min. It is suitable for flanging and beading 0.8mm 1.5mm sheets.

Horizontal Multiple Corrugation double ended machine, where two side corrugations on the barrel body are done in one operation. The machine is MS fabricated, hydraulically operated with a 10 H.P. electrical power pack and panel control system (Siemens). Two sets of corrugation dies, duly hardened and faced on both heads, are operated via hydraulic cylinders. Two moving heads for corrugating the body are operated in one operation, with both heads moving front and back for corrugating the body. The maximum length is 40inches, and the maximum diameter is 575mm. The operating cycle of the machine is 14-15 seconds.

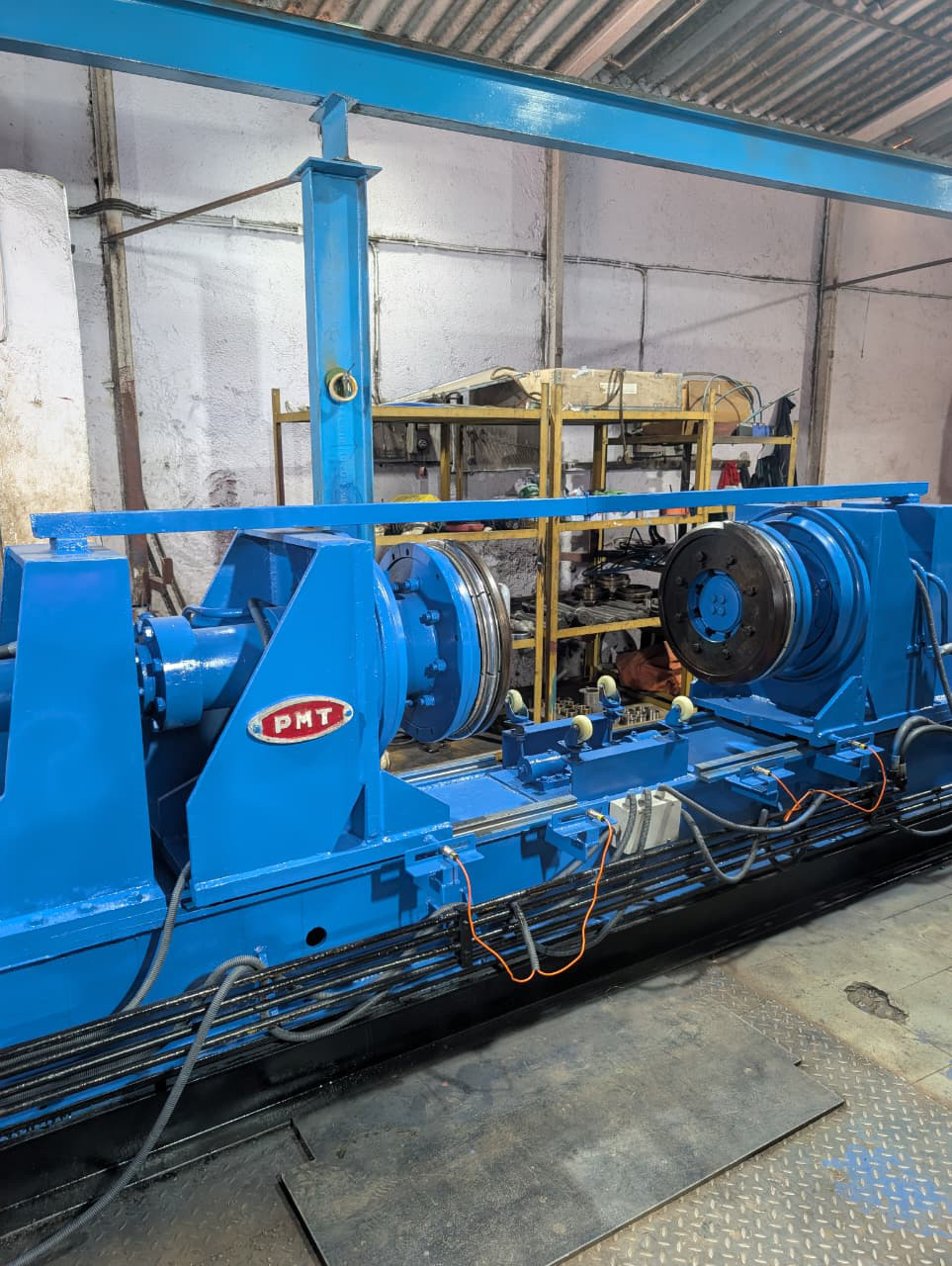

Horizontal double-ended barrel seaming machine power operated with a 30HP motor. Machine MS fabricated, pneumatically operated with one pneumatic cylinder provided for moving both the right head. The head fits on the barrel for the seaming process to begin and is released after the seaming process is completed with the four hands (first & second operation hands) fitted with CAM system with a CAM shaft of DIA 75MM duly ground. The machine's two main shafts are 90mm DIA. The main shaft, which is driving the connecting CAM shaft, is gear driven and then consecutively sprocket driven. The machine is fitted with two seaming chucks duly hard faced with two sets of WPS seaming rollers. The machine is fitted with a pneumatic clutch and brake assembly operated via panel control. The machine is suitable to seam both double and triple seam barrels in a maximum 1.3mm thickness sheet.

Gooseneck flanging machine, M.S. Fabricated, gear-driven with a 5 H.P. motor and starter. The machine is single-ended and pneumatically operated with FRL unit, foot valve, and pneumatic accessories. Dies in the machine are fitted on the outer side with guide rollers on the gauge plate and an additional rotary supporting dish pneumatically operated to hold the barrel shell on the opposite side of the operation side. Complete with standard fittings and accessories.

Pre Curling machine, to pre-curl top and bottom lids of Barrel for triple seam. Machine M.S. Fabricated and having two geared motors, one to drive the chuck spindle and one to drive the cam assembly. One geared motor is 5 H.P. and the other 2 H.P., respectively. The machine has a pneumatic clutch and brake assembly and is operated via a panel control system and accessories. Lids are to be manually inserted into the machine, after which the machine pre-curls the lid and ejects it as the machine is sloped. Complete with one set of rollers duly hardened and standard fittings. Seaming compound ejection is monitored through the control panel for application of seaming compound on lids to avoid leakage before the seaming process.

Barrel testing equipment, MS fabricated, pneumatically operated with hand lever valve, roto seal, pressure gauge, and pneumatic accessories, having two rubberized heads (ONE SIDE) pneumatically operated and one operated via screw and nut system, with barrel centering roller system. The barrel rotates while the testing is done to check for any leakages with soap water or loss in pressure on pressure gauge, complete with standard accessories. The operating cycle is 14 seconds, with a maximum diameter of 575mm and a maximum length of 40 inches.
